Bioclere™ OH
Product Description

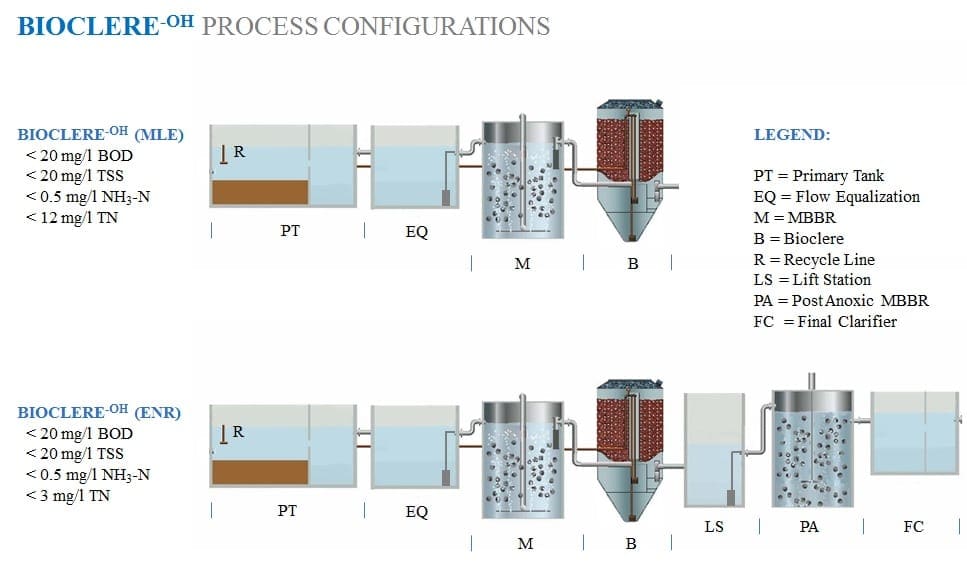

Bioclere-OH is a two-stage hybrid biological treatment process integrating an AquaCELLTM moving bed biofilm reactor (MBBR) with a BioclereTM high rate trickling filter. The high rate productivity and oxygen transfer efficiency of the MBBR combined with the polishing and clarification capability of the Bioclere makes Bioclere-OH ideal for high-performance nitrification and denitrification applications. BOD/COD removal and partial nitrification are accomplished in the first stage MBBR by heterotrophic organisms allowing a robust population of nitrifying autotrophic organisms to colonize the trickling filter media bed and accomplish complete ammonia-N removal. Bioclere-OH is a fixed-film technology offering process stability, small footprint, minimal process control requirements and high-quality effluent.
Process Advantages
Stable & Resilient Two Stage Biological Process
Bioclere-OH can accommodate intermittent flows, extreme temperature variations and fluctuations in organic & nutrient loading. Its two-stage process separates biological trophic levels to enhance treatment and/or handle high strength wastes.
Nitrogen Conversion & Reduction
Bioclere-OH is specifically designed for cost-effective, high-performance ammonia-N, nitrate-N, and total nitrogen removal. Nitrify to < 0.5 mg/l NH3 and denitrify to < 5 mg/l TN.
Minimal Sludge Production
Biological fixed films are known for their extensive microbial communities that enable efficient digestion and mineralization of sludge.
Self-Regulating & Purging Biological Filter
The Bioclere-OH MBBR and trickling filter media beds never require replacement or cleaning. The media is constructed of UV resistant durable plastic with > 80% open space giving it an indefinite lifespan without the potential for plugging. Biomass naturally sloughs off the media and regenerates eliminating the need to manually clean or backwash the reactors.
Features
- Treats flows from 1,000 to 100,000 gpd
- Low maintenance costs
- Small footprint
- Modular design enables phased construction
- Durable fiberglass construction
- Sealed and insulated for seasonal conditions
- Internal gravity flow system
- Treats high strength waste
- Highly effective nitrification/denitrification process
- Fully Automated PLC Control Systems
